Strategy Over Size: A Masterclass in Transforming the "Cellular" Bungalow (Without an Extension)
Homeowners in often face a common dilemma: they love their location but have outgrown their living space. Frequently, they are told by other practices that their budget is too small for an extension, leaving them at a dead end.
At MAD Architects LLP, we view these constraints as a strategic challenge. We believe that effective architecture is about the intelligence of the floor plan, not just the size of the footprint. Our recent transformation of a semi-detached bungalow in Walton demonstrates how we help homeowners across Chesterfield, Sheffield, and the Peak District move from a "cellular" layout to a connected home, unlocking "hidden" square footage without the cost of a physical extension.
The Problem: The "Cellular Trap"

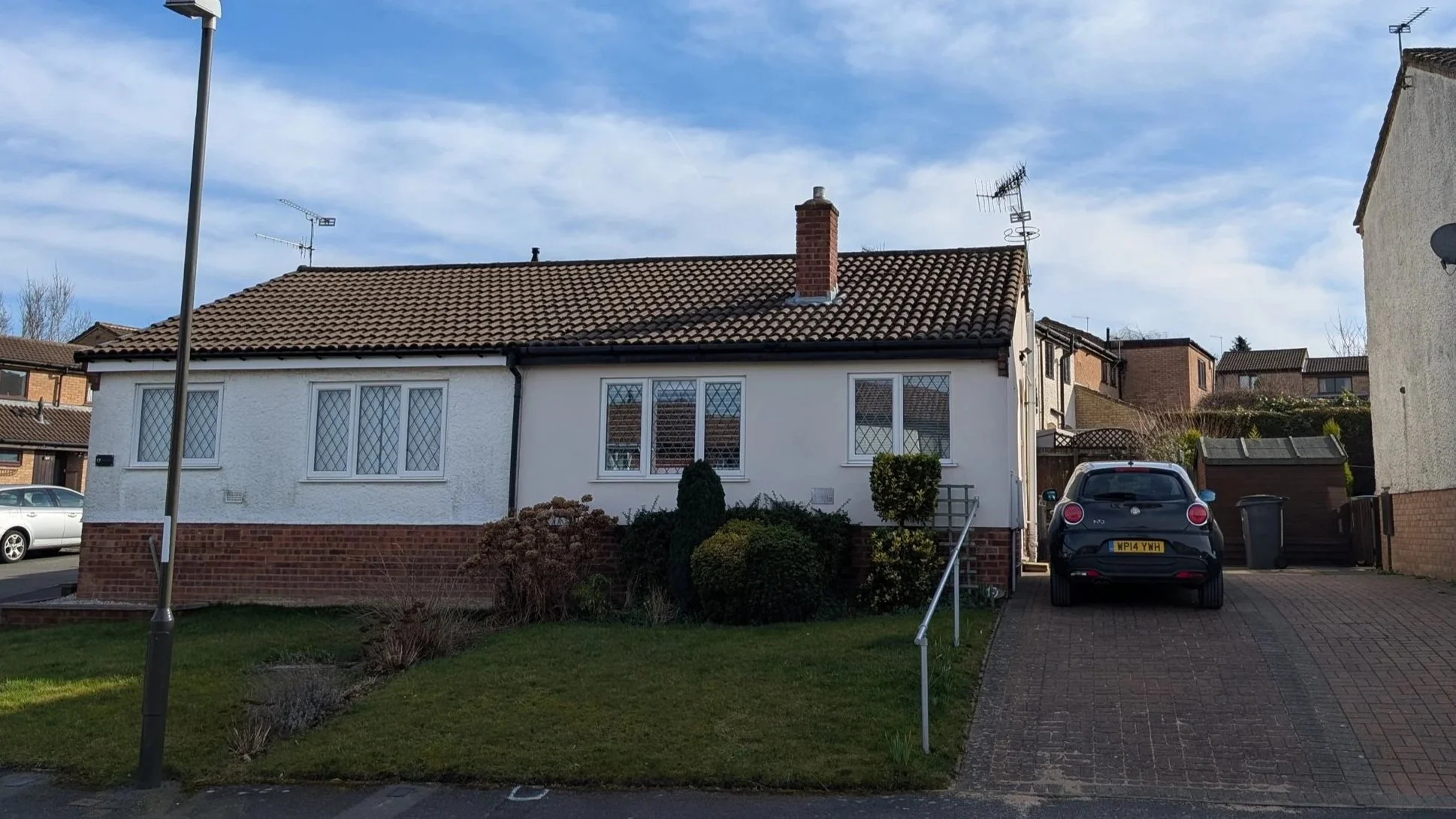

The original 1970s layout of this bungalow in Walton, Chesterfield was a classic example of an inefficient floor plan. Despite having a reasonable footprint, the home felt cramped and disconnected.
The primary issue was a restrictive central corridor that consumed nearly 15% of the total floor area. This was essentially "lost space"—area that the client was paying to heat and maintain, but could not actually use for living. Combined with a fragmented kitchen and a living room dominated by dated internal features, the home felt significantly smaller than its 50m².

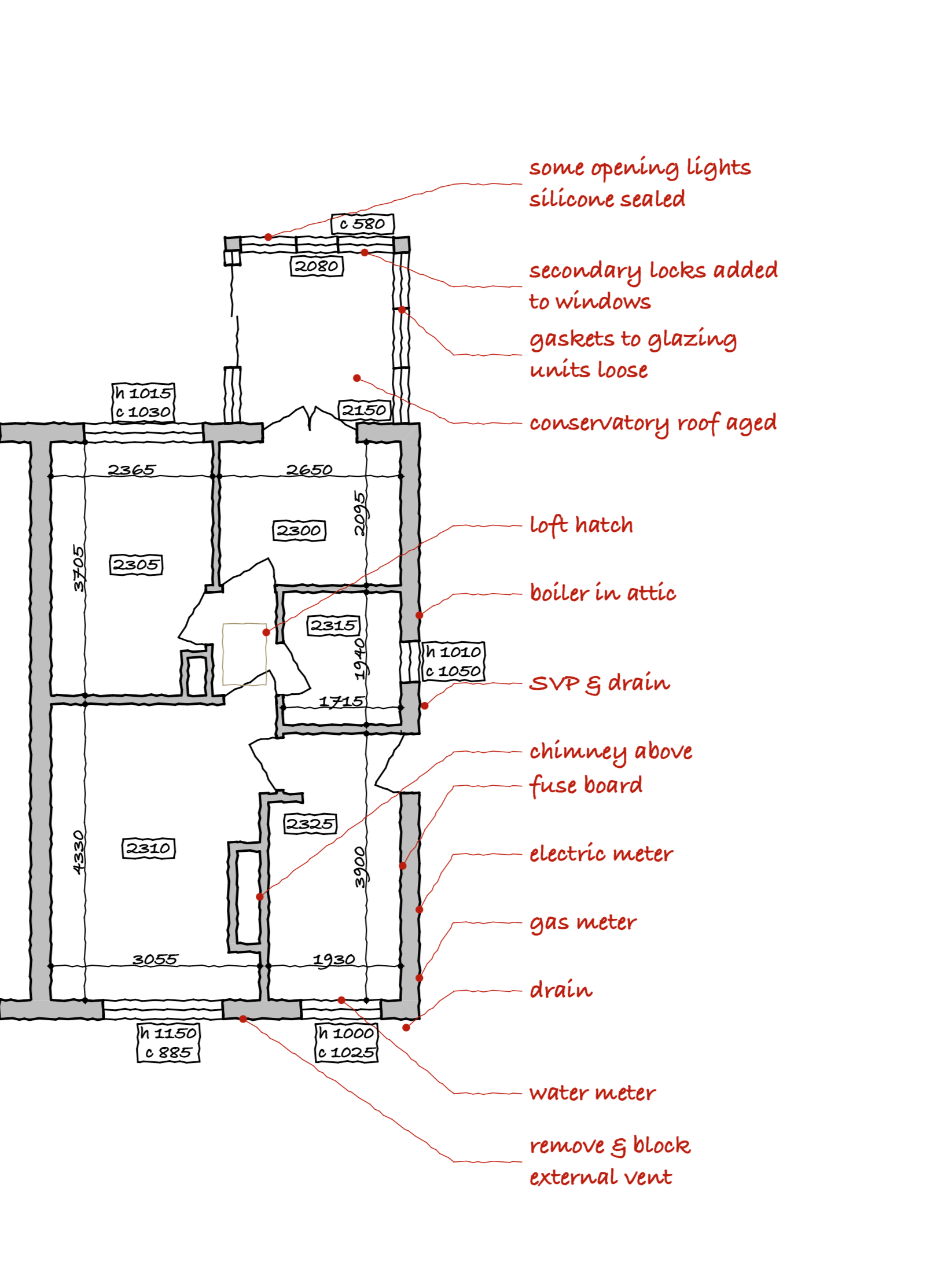

existing floor plan

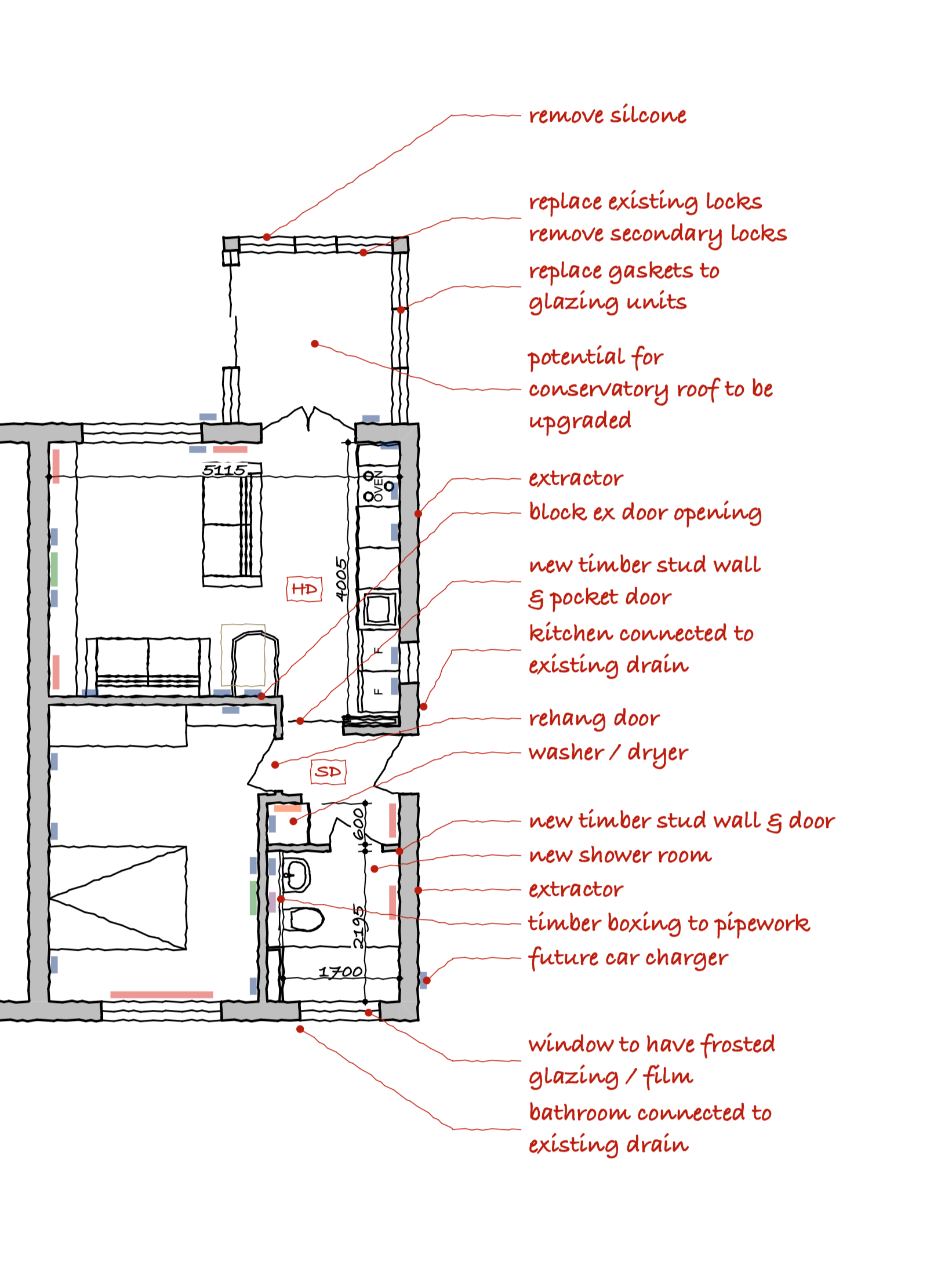

proposed floor plan
The Strategic Pivot: Re-imagining the Internal Plan
While a traditional approach might have suggested an expensive extension to add more room, we focused on maximizing the value of the existing structure. We proposed a concise Feasibility Study to re-imagine the home from the inside out.
By flipping the functional core of the house, we achieved three major improvements:
Eliminating Wasted Circulation: By removing the central hallway, we reclaimed that dormant space and integrated it into the primary living zones.
Re-orienting to the Garden: We moved the kitchen and dining areas to the rear of the property. For the first time, the heart of the home has a direct, natural connection to the garden, creating a bright and open environment.
Optimizing Every Metre: The largest room—previously the living area—was repurposed as a quiet, spacious master bedroom. The former kitchen was converted into a modern, accessible wet room.
Technical Execution and Future-Proofing
Expert design solves current spatial problems while anticipating future needs. As part of our surgical planning, we ensured the technical execution provided long-term value:
Infrastructure Ready: We integrated a new electrical utility strategy designed for future solar panels and EV charging.
Thermal Improvements: We identified practical upgrades, such as renewed attic insulation and window seal replacements, to improve the building’s thermal performance without a total overhaul.
The Result: A Home Reclaimed
By focusing on spatial efficiency, we transformed an outdated, inefficient property into a bright, accessible, and highly functional modern home.
We successfully increased the usable living area without the high costs and planning complexities of a traditional extension. The project serves as a reminder: if your budget is tight or your site is constrained, you may not need more building—you may simply need a better strategy.
